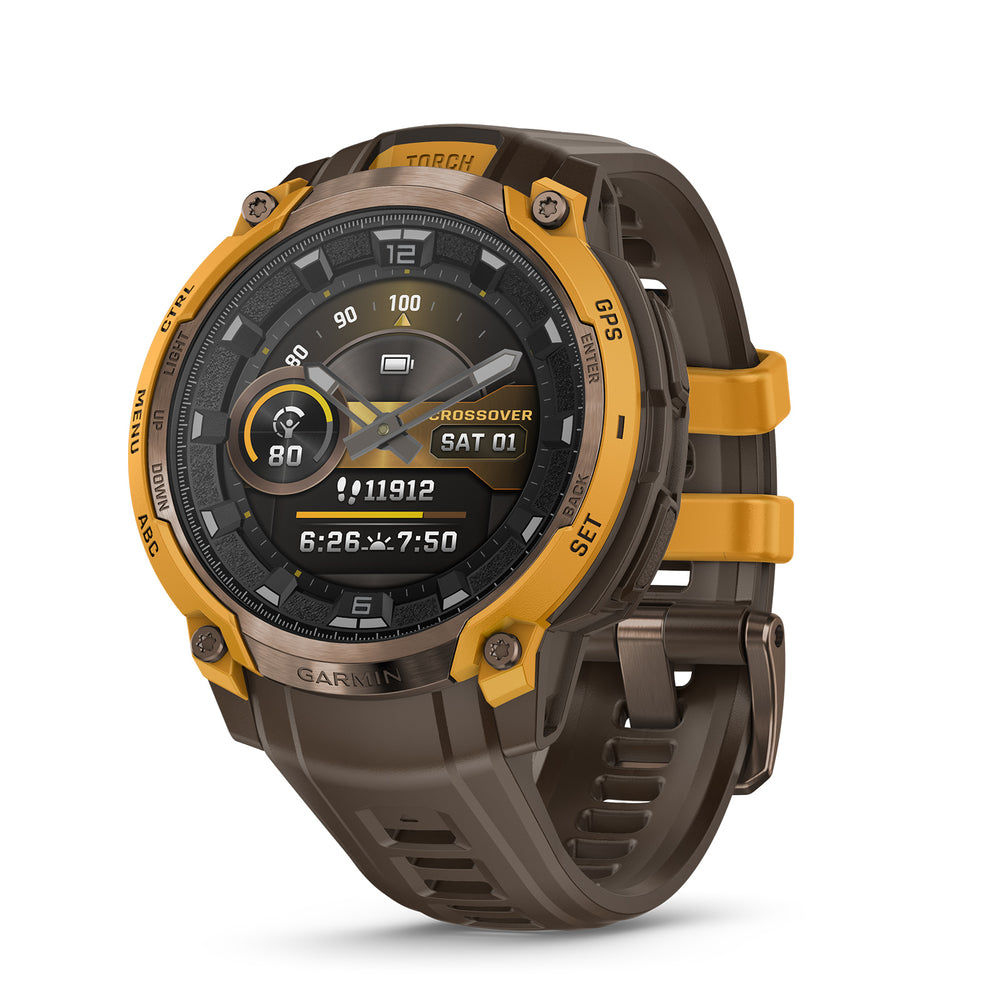

Garmin Instinct Crossover AMOLED Rugged Hybrid GPS Smartwatch
The hybrid smartwatch that looks like a classic analog but packs every Instinct 3 feature. Super-LumiNova analog hands, vivid AMOLED display, sapphire crystal, LED flashlight, multi-band GPS, and 14-day battery — from $649.99.
Our Take: The Instinct Crossover AMOLED is Garmin’s most unique watch — a fully functional smartwatch with real mechanical analog hands sitting on top of a bright AMOLED display. The Super-LumiNova coating means you can read the time in complete darkness without activating the screen, and RevoDrive technology keeps the hands accurate even after hard impacts. When you want to see your data, the hands automatically move out of the way. Under the hood, this is essentially an Instinct 3 with every feature: multi-band GPS with SatIQ, LED flashlight, Elevate Gen 4 HR, Training Load Focus/Ratio, Sleep Coach, Garmin Pay, and 4GB storage. You also get sapphire crystal (vs Gorilla Glass on the standard Instinct 3), a stainless steel bezel, and 10ATM/MIL-STD-810 ruggedness in a 67g package. The premium for analog hands is roughly $200 over the Instinct 3 AMOLED 45mm ($449.99). Whether that’s worth it depends on how much you value the hybrid look. If analog style doesn’t matter, the Instinct 3 delivers the same features for less. But if you want a rugged smartwatch that actually looks like a watch, nothing else in Garmin’s lineup comes close.
Why you’d choose this watch
- Physical Super-LumiNova-coated analog hands over a vivid 1.2″ AMOLED display. RevoDrive technology keeps hands accurate after impacts and moves them out of the way when viewing data. Classic watch style meets modern smartwatch.
- Flat sapphire crystal for maximum scratch resistance. Dual-layered stainless steel bezel. Fiber-reinforced polymer case. Built to MIL-STD-810 thermal and shock standards. 10 ATM (100m) water resistance. 67g.
- Multi-band GNSS for superior positioning in dense forests, urban canyons, and mountainous terrain. SatIQ technology automatically selects the best satellite signal to balance accuracy and battery life.
- Dimmable white/red LED flashlight (white/green on Tactical). Useful for trailheads, campsites, and emergencies. SOS strobe mode for safety. Always accessible from any screen.
- Up to 14 days in smartwatch mode, 29 hours GPS, 15 hours multi-band GPS, 18 days battery saver. 5 days with always-on display. Competitive with the Instinct 3 AMOLED.
- Elevate Gen 4 wrist HR, Pulse Ox, Sleep Coach, Nap Detection, Stress/Body Battery, HRV status, Training Load Focus, Training Load Ratio, VO2 Max, Recovery Advisor, Muscle Map for strength.
- Contactless payments, smart notifications, Garmin Share, Garmin Messenger, Connect IQ apps, music control. 4GB internal storage. Compatible with iOS and Android.

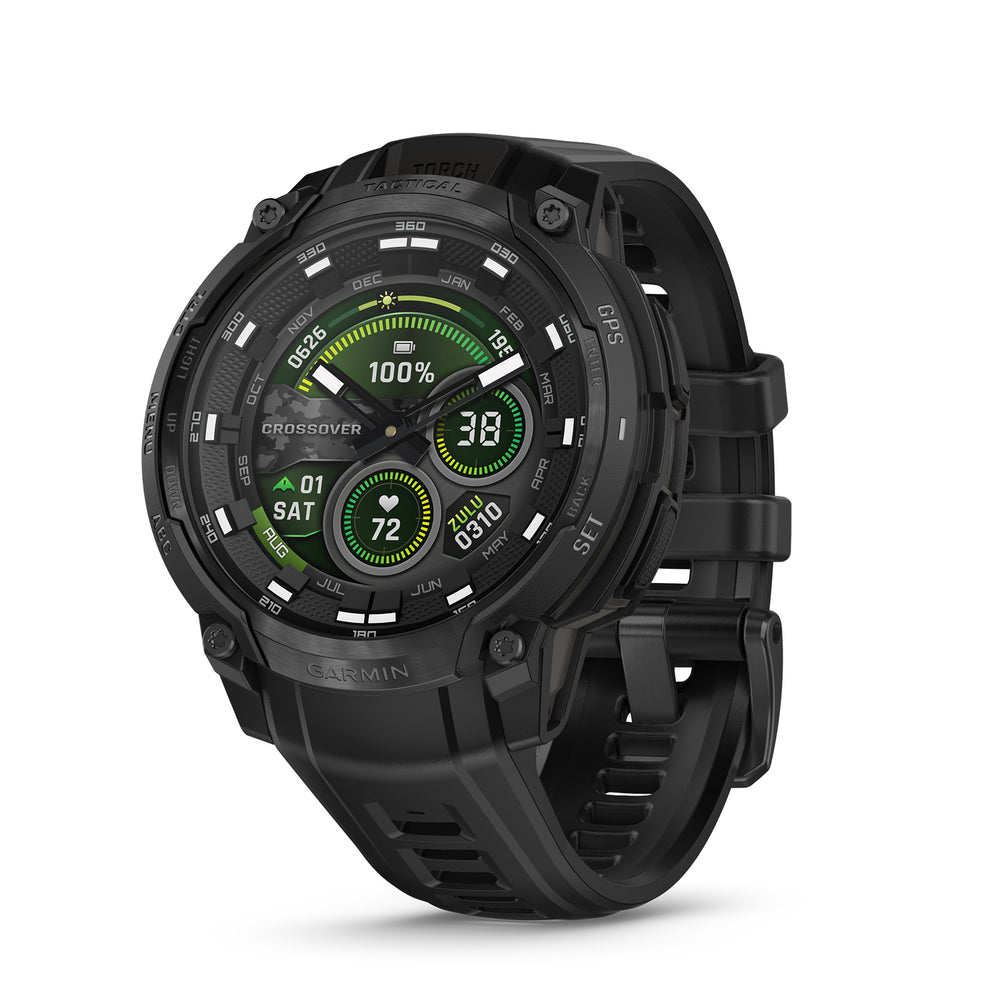

- Optional Tactical Edition adds Stealth Mode, NVG compatibility, Kill Switch, applied ballistics solver, Jumpmaster, and white/green flashlight. $749.99 in black only.
Tip: Tab to a reason and press Enter to expand the explanation. Press Escape to close.
Who this watch is perfect for
- Watch enthusiasts who want smart features without giving up an analog dial.
- Outdoor athletes and adventurers who need military-grade ruggedness with sapphire protection.
- Runners, hikers, cyclists, and multi-sport athletes who want full Instinct 3 training tools.
- Anyone who values a timepiece that doesn’t scream “smartwatch” in casual settings.
You may prefer a different Garmin if…
- You want the same features without analog hands for less → Instinct 3 from $399.99
- You want full maps, speaker/mic, and premium multisport → fēnix 8 AMOLED from $999.99
- You want basic Instinct ruggedness on a budget → Instinct E from $199.99
Specifications
| Feature | Detail |
|---|---|
| Display | 1.2″ AMOLED + analog hands (Super-LumiNova) |
| Lens | Flat sapphire crystal |
| Case | Fiber-reinforced polymer, stainless steel bezel |
| Dimensions | 46.6 × 46.6 × 15.1 mm (17mm with sensor) |
| Weight | 67g (with strap) |
| Water Rating | 10 ATM (100m) |
| MIL-STD | MIL-STD-810 (thermal + shock) |
| GPS | Multi-band GNSS with SatIQ (GPS, GLONASS, Galileo) |
| Sensors | Elevate Gen 4 HR, Pulse Ox, baro altimeter, compass, gyroscope, accelerometer, thermometer |
| Flashlight | Dimmable white/red LED (white/green on Tactical) |
| Battery — Smartwatch | Up to 14 days (5 days AOD) |
| Battery — GPS | 29 hrs single-band / 15 hrs multi-band |
| Battery Saver | Up to 18 days |
| Connectivity | Bluetooth, ANT+, Wi-Fi |
| Payments | Garmin Pay (all variants) |
| Storage | 4GB internal |
| Band | 22mm quick-release silicone |
| Wrist Circumference | 141–213mm |
| Warranty | 1 year manufacturer |
Variant Reference
| Colorway | MPN | UPC | MSRP |
|---|---|---|---|

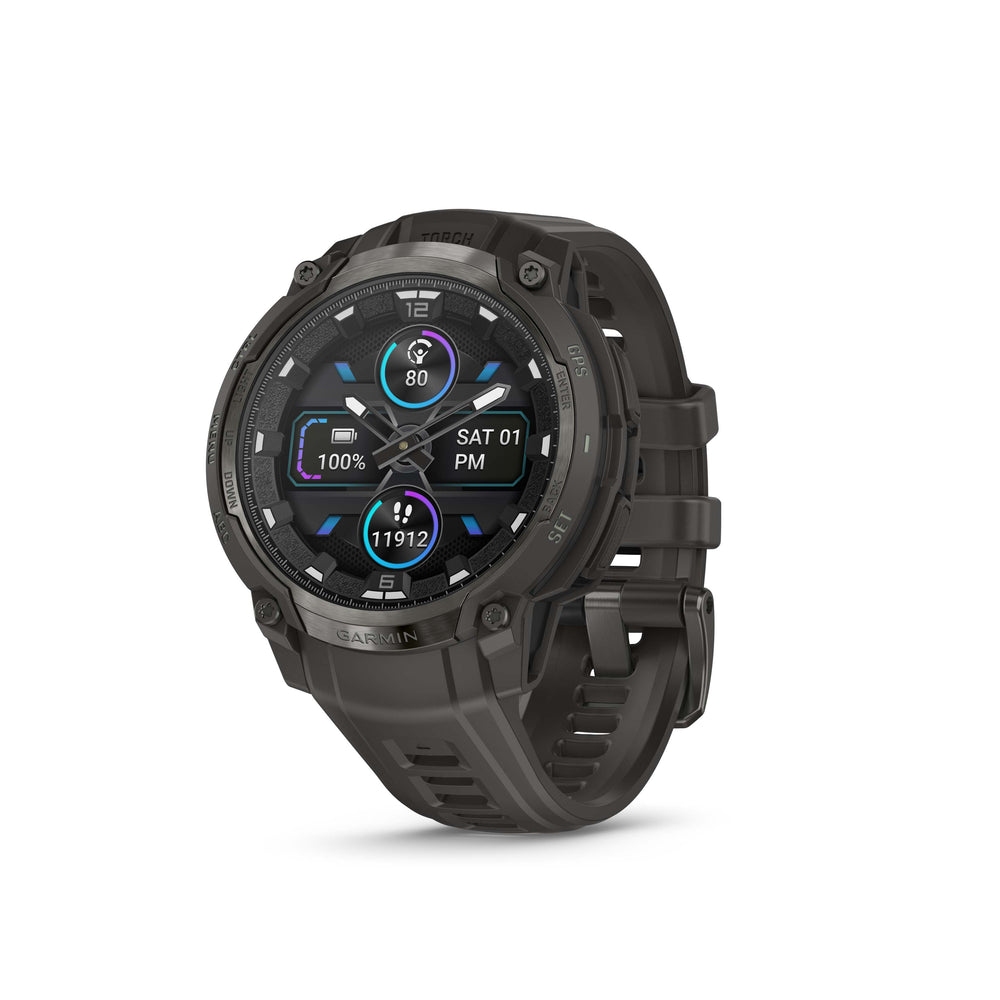

| Charcoal | 010-03398-00 | 753759356989 | $649.99 |
| Bronze/Sunburst | 010-03398-01 | 753759356996 | $649.99 |
| Tactical Edition – Black | 010-03398-02 | 753759357009 | $749.99 |
How the Instinct Crossover AMOLED Compares
Focus or hover a row label for a plain-English definition.
| Feature |
Instinct EEntry
|
fēnix 8AMOLED
|
Instinct 3Current Gen
|
Crossover★ AMOLED
|
|---|---|---|---|---|
| Display?Screen technology and size. | MIP 0.79″/0.91″ | AMOLED 1.2″–1.4″ | MIP or AMOLED 1.2″ | AMOLED 1.2″ + analog |
| Analog Hands?Physical watch hands with Super-LumiNova. | No | No | No | Yes |
| Lens?Protective glass material. | Chem. strengthened | Sapphire crystal | Gorilla Glass / sapphire | Sapphire crystal |
| Case?Case material. | FRP | FRP/titanium + SS/Ti bezel | FRP + metal bezel | FRP + SS bezel |
| Size | 40mm / 45mm | 43mm / 47mm / 51mm | 45mm / 50mm | 46.6mm only |
| Weight?Watch weight with band. | 36g / 47g | 53g–96g | 43g–66g | 67g |
| LED Flashlight?Built-in dimmable flashlight. | No | Yes | Yes | Yes |
| Water Rating?Water resistance depth. | 10 ATM | 10 ATM (dive-rated) | 10 ATM | 10 ATM |
| Feature |
Instinct EEntry
|
fēnix 8AMOLED
|
Instinct 3Current Gen
|
Crossover★ AMOLED
|
|---|---|---|---|---|
| GPS?Satellite positioning system. | Single-band | Multi-band + SatIQ | Multi-band + SatIQ | Multi-band + SatIQ |
| Battery (Smartwatch)?Battery life in daily smartwatch mode. | 14–16 days | Up to 29 days | 24–40 days (solar) | 14 days |
| Battery (GPS)?Battery life in GPS tracking mode. | 20–25 hrs | Up to 72 hrs | 28–60 hrs | 29 hrs |
| Garmin Pay?Contactless wrist payments. | No | Yes | Yes | Yes |
| Training Load?Training Load Focus and Ratio analytics. | No | Yes | Yes | Yes |
| Sleep Coach?Personalized sleep recommendations. | No | Yes | Yes | Yes |
| Price?Starting price at HRM USA. | $199.99 | $999.99 | $399.99 | $649.99 |
Where does the Crossover AMOLED fit in the Instinct lineup?
Budget Rugged — Instinct E
- From $199.99
- Entry-level Instinct with MIP display, basic GPS, and core health tracking. No flashlight, no Garmin Pay, no Training Load. Best for budget-conscious users who want Instinct ruggedness.
- View on heartratemonitorsusa.com →
Premium Multisport — fēnix 8 AMOLED
- From $999.99
- Garmin’s flagship multisport GPS watch with AMOLED display, full-color maps, speaker/mic, dive-rated 10 ATM, sapphire crystal, and advanced training. The premium step up from Instinct.
- View on heartratemonitorsusa.com →
Current Gen Digital — Instinct 3
- From $399.99
- Full-featured Instinct 3 with Solar or AMOLED display, Training Load, Sleep Coach, flashlight, multi-band GPS. Same features as Crossover without analog hands. 45mm or 50mm.
- View on heartratemonitorsusa.com →
★ You Are Here — Crossover AMOLED
- From $649.99
- Premium hybrid with analog hands + AMOLED display + sapphire crystal. Every Instinct 3 feature in a classic watch design. Tactical Edition available at $749.99.
- View on heartratemonitorsusa.com →
CA Residents: Prop 65 Warning
We work hard to keep product information accurate. If you spot an error, email us at sales@hrmusainc.com — we appreciate it.
Instinct Crossover AMOLED — Frequently Asked Questions
What makes the Instinct Crossover AMOLED different from a regular Instinct 3?
The Crossover AMOLED adds physical analog watch hands with Super-LumiNova coating on top of the same 1.2″ AMOLED display. RevoDrive technology keeps the hands accurate even after impacts and automatically moves them out of the way when you’re viewing data. You get the same Instinct 3 feature set — multi-band GPS, LED flashlight, Elevate Gen 4 HR, Training Load, Sleep Coach, Garmin Pay — plus hybrid styling with sapphire crystal protection. The trade-off is a higher price ($649.99 vs $449.99 for the 45mm Instinct 3 AMOLED) and 46.6mm only (no 50mm option).
How long does the battery last?
In smartwatch mode: up to 14 days (or 5 days with always-on display). In GPS mode: up to 29 hours (single-band) or 15 hours (multi-band). Battery saver mode extends to 18 days. These numbers are somewhat shorter than the Instinct 3 Solar (up to 40 days with solar) but competitive with the Instinct 3 AMOLED 45mm.
Does the Crossover AMOLED have maps?
No. Like the Instinct 3, the Crossover AMOLED uses breadcrumb navigation, not full-color maps. You get TracBack routing, compass, barometric altimeter, and multi-band GPS with SatIQ for accurate positioning, but no turn-by-turn map display. For full maps, you’d need a fēnix, Enduro, or MARQ series watch.
What’s the difference between the standard and Tactical Edition?
The Tactical Edition ($749.99) adds Stealth Mode (disables GPS/Bluetooth connectivity), Night Vision Goggle compatibility (NVG-safe red display), a Kill Switch for instant data wipe, an applied ballistics solver, Jumpmaster activity profile, and a white/green LED flashlight (vs white/red on the standard). It comes only in black.
Is the Instinct Crossover AMOLED water resistant?
Yes — rated to 10 ATM (100 meters). Suitable for swimming and water sports but not designed for scuba diving. It’s also built to MIL-STD-810 for thermal and shock resistance with a dual-layered stainless steel bezel.
How does it compare to the Instinct E?
The Instinct E ($199.99–$249.99) is Garmin’s entry-level Instinct — MIP display, no flashlight, no multi-band GPS, no Garmin Pay, no Training Load features, no analog hands. The Crossover AMOLED is a premium model with every Instinct feature plus hybrid analog styling and sapphire crystal. The E is for budget-conscious users who want basic Instinct ruggedness; the Crossover AMOLED is for enthusiasts who want the full package.
What band size does the Crossover AMOLED use?
22mm quick-release bands. Wrist circumference range: 141–213mm. The included silicone band has a tang buckle with two keepers. Any standard 22mm quick-release strap is compatible.
