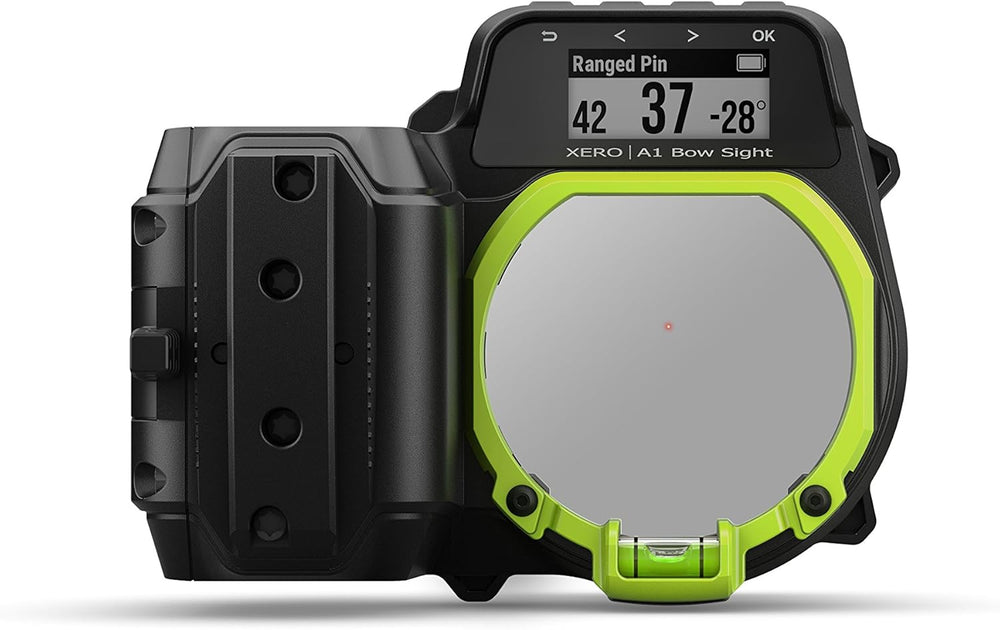

Garmin Xero™ A1 Auto-Ranging Digital Bow Sight
The Xero A1 is Garmin’s entry point into auto-ranging digital bow sights — a bow-mounted laser rangefinder and LED targeting system that measures the angle-compensated distance to your target and provides the exact red LED pin for the shot, even at in-between yardages. Press the silent wired trigger at rest or full draw, and the A1 instantly ranges game up to 100 yards or reflective targets up to 300 yards. LED pins automatically adjust brightness to conditions and allow an unobstructed view of your target. Customizable for single-pin, multi-pin, or manual pin selection. IPX7 waterproof, 1-year battery life on 2 AAA lithium batteries, 14.7 oz. Available in right-hand and left-hand configurations. The A1 does not include dual-color pins, Laser Locate GPS, multiple arrow profiles, or shot dynamics — for those features, step up to the A1i or A1i Pro.
Our Take: The Xero A1 is the most affordable way to get Garmin’s auto-ranging technology on your bow. It does the core job brilliantly: press the trigger, get the exact distance, see the exact pin. No separate rangefinder. No guessing between pins. The red LED pins are bright from sunrise to sunset and completely unobstructed — no physical pins blocking your target view. At $799.99, it’s still a significant investment, but it’s $200 less than the A1i and $500 less than the A1i Pro. What you give up: no green pins (red only), no Laser Locate GPS integration, no multiple arrow profiles, no shot dynamics data. If you shoot one bow with one arrow setup and don’t need GPS game tracking, the A1 delivers the essential auto-ranging experience at the lowest price in the Xero lineup.
Why you’d choose this sight
- Auto-ranging to 100 yds game / 300 yds reflective Built-in laser rangefinder measures angle-compensated distance and displays the exact LED pin for the shot. No separate rangefinder needed.

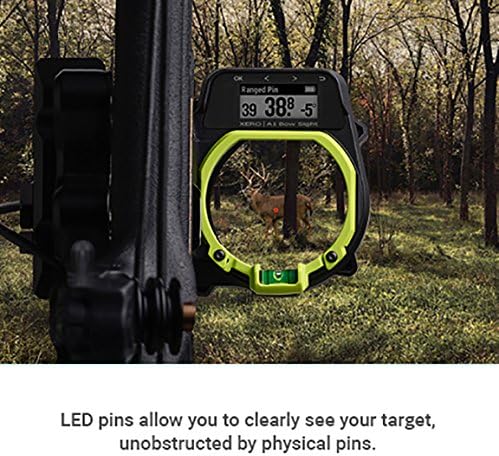

- Red LED pins — unobstructed target view Bright red LED pins are visible in any light. No physical pins to block your sight picture. Auto-brightness adjusts from sunrise to sunset.

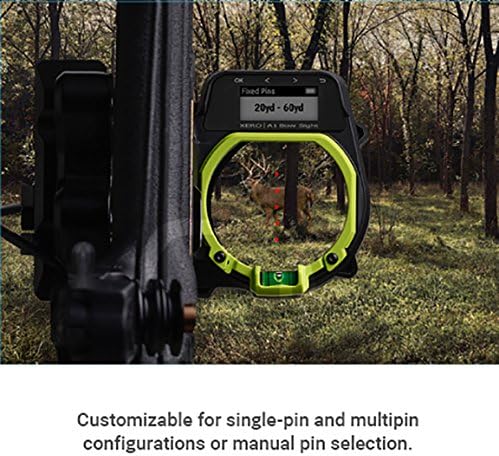

- Single-pin, multi-pin & manual configurations Use single-pin mode for one precise aiming point, multi-pin for a stack, or manually set your favorite fixed distances.
- Silent trigger — range at rest or full draw Wired silent button mounts anywhere on your grip. One finger triggers the rangefinder with minimal movement. No noise to spook game.
- Angle-compensated distance for uphill/downhill Automatically calculates the true horizontal distance to your target when shooting at an angle — critical for tree stand and hillside hunting.
- 1-year battery / IPX7 waterproof / 14.7 oz Up to 1 year on 2 AAA lithium batteries. IPX7 rated for rain and snow. Lightweight at 14.7 oz — won’t unbalance your bow.
- Lowest price in the Garmin Xero lineup At $799.99, the A1 is $200 less than the A1i and $500 less than the A1i Pro. Same core ranging and LED pin technology.
- No subscription — all features included No app subscriptions, no recurring fees. Everything works out of the box with the included trigger and mount.
Who this sight is perfect for
- Bowhunters who want auto-ranging accuracy without the premium price of the A1i or A1i Pro.
- Archers who shoot one bow with one arrow setup and don’t need multiple arrow profiles.
- Hunters who don’t use a Garmin GPS device and don’t need Laser Locate game tracking.
- Budget-conscious archers looking for the core Xero experience — range, pin, shoot.
You may prefer a different Xero if…
- You want dual-color pins (red + green) for faster distance identification — step up to the A1i ($999.99).
- You need multiple arrow profiles for different setups — available on the A1i and A1i Pro.
- You want Laser Locate GPS integration to mark where your target was when you shot — A1i or A1i Pro.
- You want micro-adjustable rails, auto pin-stack calibration, and quick-detach mount — A1i Pro ($1,299.99).
- You shoot a crossbow — the Xero X1i ($1,799.99) is designed for bolts with 3.5x magnification.

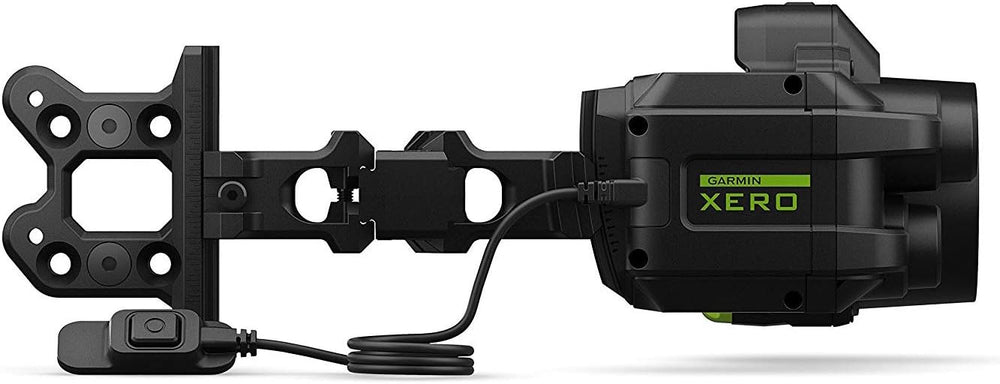

Xero™ A1 Auto-Ranging Digital Bow Sight Specifications
| Specification | Value |
|---|---|
| Dimensions | 3.9" × 3.1" × 3.8" (100.3 × 79.4 × 97.1 mm) |
| Weight | 14.7 oz (418.0 g) |
| Display | Sunlight-visible transflective MIP, 2.0″ diagonal |
| LED pin colors | Red only |
| Range to game | Up to 100 yards |
| Range to reflective targets | Up to 300 yards |
| Angle compensation | Yes |
| Water rating | IPX7 |
| Battery | 2 AAA lithium (not included) |
| Battery life | Up to 1 year |
| Operating temp | -4°F to 140°F (-20°C to 60°C) |
| Mount type | Standard screw mount |
| Trigger | Wired silent button |
| Pin modes | Single-pin, multi-pin, manual |
| Connectivity | microUSB (firmware updates) |
All Xero Bow & Crossbow Variants — MPN & UPC Reference (USA)
| Model | Hand | MPN | UPC | MSRP |
|---|---|---|---|---|
| Xero A1 | Right | 010-01781-00 | 753759174392 | $799.99 |
| Xero A1 | Left | 010-01781-01 | 753759174408 | $799.99 |
| Xero A1i | Right | 010-01781-10 | 753759174415 | $999.99 |
| Xero A1i | Left | 010-01781-11 | 753759174422 | $999.99 |
| Xero A1i Pro | Right | 010-01781-50 | 753759279486 | $1,299.99 |
| Xero A1i Pro | Left | 010-01781-51 | 753759279493 | $1,299.99 |
| Xero X1i Crossbow | — | 010-02212-00 | 753759263898 | $1,799.99 |
All A1 series bow sights share the same housing form factor and are available in right-hand and left-hand configurations. The X1i is a crossbow-specific scope with 3.5x magnification — it is not compatible with compound bows.
Xero A1 vs A1i vs A1i Pro vs X1i — Full Comparison
Three bow sights and one crossbow scope — all with Garmin’s auto-ranging laser technology. Hover any row label for a plain-English explanation.
Rangefinding & Optics
| Feature |
A1Base
|
A1iMid
|
A1i ProPro
|
X1iCrossbow
|
|---|---|---|---|---|
| Range to game?Maximum distance the laser rangefinder can detect game animals. | 100 yds | 100 yds | 100 yds | 250 yds |
| Range to reflective?Maximum ranging distance to reflective targets. | 300 yds | 300 yds | 300 yds | 500 yds |
| Angle compensation?Adjusts distance for uphill/downhill angle. | Yes | Yes | Yes | Yes |
| Magnification?The X1i provides 3.5x optical magnification. Bow sights are 1x. | None (1x) | None (1x) | None (1x) | 3.5x |
| AutoCal max speed?Maximum projectile speed the auto-calibration supports. | — | — | Arrow speed input | 650 FPS |
| AutoCal aim range?Maximum distance for auto-calibrated aim points. | — | — | To bow max | 80 yds |
Aiming & Pin Features
| Feature |
A1Base
|
A1iMid
|
A1i ProPro
|
X1iCrossbow
|
|---|---|---|---|---|
| LED pin / aim point colors?Dual colors help distinguish distances at a glance. | Red only | Red + Green | Red + Green | Multi-color (auto/manual) |
| Auto brightness?Pins adjust brightness based on ambient light. | Yes | Yes | Yes | Yes |
| Pin modes?Single-pin, multi-pin, or manual pin selection. | Single / multi / manual | Single / multi / manual | Single / multi / manual | Auto aim points |
| Dynamic Level?Cant indicator next to the pin with variable sensitivity. | No | No | Yes | Aim Point Level |
| Flight Apex?Shows the highest point of projectile trajectory. | No | No | Yes | Yes |
| Steady Aim?Shows when you are holding steady enough for an accurate shot. | No | No | No | Yes |
| Target Lock?Confirms consistent rangefinder readings before displaying aim point. | No | No | No | Yes |
| Configurable aim point shapes?Choose different shapes for aiming points. | No | No | No | Yes |
Setup, Profiles & GPS
| Feature |
A1Base
|
A1iMid
|
A1i ProPro
|
X1iCrossbow
|
|---|---|---|---|---|
| Multiple arrow/bolt profiles?Save settings for different configurations. | No | Yes | Yes | Yes |
| Auto pin-stack calibration?Generates full pin stack from 20-yard pin + bow data. | No | No | Yes | Yes |
| Micro-adjustable rails?Precision knobs for elevation, windage, and laser alignment. | No | No | Yes | N/A (scope mount) |
| Quick-detach mount?Remove and reattach sight to the exact same position. | No | No | Yes | Integrated mount |
| XD Mode?Extends max shooting range by 10–15 yards for practice. | No | No | Yes | No |
| Laser Locate™?GPS waypoint of target location at time of shot. | No | Yes | Yes | Yes |
| Shot dynamics?Records bow level at release, impulse duration. | No | Yes | Yes | Yes |
| Electronic compass?Built-in compass for heading reference while ranging. | No | No | No | Yes |
Hardware & Build
| Feature |
A1Base
|
A1iMid
|
A1i ProPro
|
X1iCrossbow
|
|---|---|---|---|---|
| Weight?Total weight including mount. | 14.7 oz | 14.7 oz | 18.0 oz | 1.9 lbs (30.4 oz) |
| Water rating?IPX7 = immersion in 1m for 30 min. | IPX7 | IPX7 | IPX7 | IPX7, nitrogen-filled |
| Battery?All use 2 AAA lithium. Lithium required for ranging. | 2 AAA lithium | 2 AAA lithium | 2 AAA lithium (incl.) | 2 AAA lithium (incl.) |
| Battery life?Estimated battery life under normal use. | Up to 1 year | Up to 1 year | Up to 1 year | Up to 1 year |
| Trigger?How you activate the rangefinder. | Wired silent button | Wired silent button | Detachable wired silent | Wired + on-device button |
| MSRP?Manufacturer's suggested retail price. | $799.99 | $999.99 | $1,299.99 | $1,799.99 |
Where this sight fits in the Garmin Xero lineup
★ Bow — Base — You Are Here
- $799.99
- Xero A1 — Auto-ranging, red LED pins, angle compensation. Essentials only.
- View on heartratemonitorsusa.com →
Bow — Mid
- $999.99
- Xero A1i — Dual-color pins, Laser Locate, multiple arrow profiles, shot dynamics.
- View on heartratemonitorsusa.com →
Bow — Pro
- $1,299.99
- Xero A1i Pro — Micro-adjust, auto-cal, quick-detach, Dynamic Level, Flight Apex, XD Mode.
- View on heartratemonitorsusa.com →
Crossbow Scope
- $1,799.99
- Xero X1i — 3.5x magnification, 250 yd game range, auto aim points to 80 yds, bolt speeds to 650 FPS.
- View on heartratemonitorsusa.com →
CA Residents: Prop 65 Warning
Legal notice: Some jurisdictions regulate or prohibit the use of electronic bow sights and crossbow scopes for hunting. The Xero does not project visible light toward the target — the laser rangefinder uses infrared light. Always check your state's current hunting regulations before use.
We work hard to keep product information accurate. If you spot an error, email us at sales@hrmusainc.com — we appreciate it.
Xero™ A1 Auto-Ranging Digital Bow Sight — Frequently Asked Questions
What is the difference between the Xero A1 and A1i?
The A1i adds dual-color LED pins (red and green), Laser Locate GPS integration for marking target locations, multiple saved arrow profiles for different setups, and shot dynamics data. The A1 has red-only pins, no GPS, one arrow profile, and no shot dynamics. The A1 is $799.99; the A1i is $999.99.
Is the Xero A1 legal for hunting in my state?
Legality varies by jurisdiction. Some states restrict electronic sights, laser rangefinders on bows, or illuminated pins for hunting. The Xero does not project visible light toward the target — it uses infrared. Always check your state’s regulations.
How does the auto-ranging work?
Press the silent trigger at rest or full draw. The built-in laser measures the angle-compensated distance and illuminates the exact LED pin. Range game up to 100 yards or reflective targets up to 300 yards.
How long does the battery last?
Up to 1 year on 2 AAA lithium batteries. Lithium is required — alkaline and NiMH batteries do not provide enough power for auto-ranging. The sight has a 24-hour auto-shutoff.
Can I upgrade from the A1 to the A1i later?
The A1 and A1i are separate devices — there is no firmware or hardware upgrade path between them. However, the A1 mount is compatible, so switching to an A1i or A1i Pro uses the same riser bracket.
Does the A1 have multiple arrow profiles?
No. The A1 supports a single arrow profile only. If you shoot multiple arrow configurations, the A1i and A1i Pro allow you to save and switch between profiles.
